风机电缆-风力发电电缆
编辑：众邦电线电缆 销售热线：13679225051 / 18192442286 来源：www.tldldl.com
产品名称

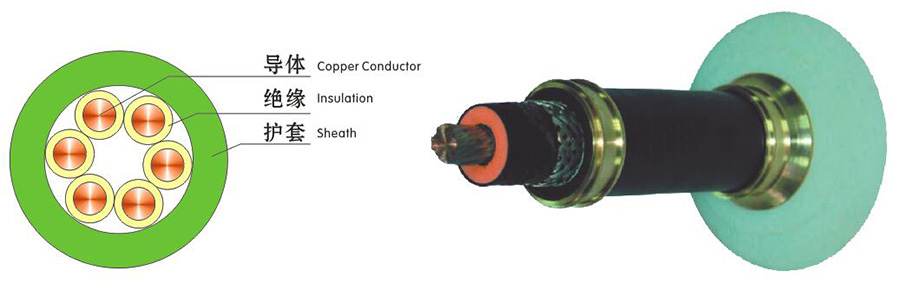

额定电压1.8/3kV及以下风力发电用耐扭曲软电缆
Flexible and Torsion Resistant Cables of Rated Voltages up to and including 1. 8/3kv for Wind Turbine
产品执行标准( Product Standard):TICW/O1-2009
产品用途:主要用于风力发电机的电能输出，风力发电用抗扭耐寒阻燃动力软电缆的使用地域不断扩大，被广泛应用在沙漠、戈壁等寒冷地带和海上、海岛等高温、高湿、日照长时间等场合，使用寿命不低于20年。
Product Application: The cables are mainly used for the electric power output of wind driven generator, as the application scope of these flexible, cold-resistant, torsion resistant and flame-retardant cables is expanded continuously, which are widely applied for the desert, Gobi as cold zones, also can be used on the sea and island under the conditions of high temperature,high humidity and long lasting sunlight, the long time service life is longer than 20 years
产品型号名称:
FDEF-25(-40)铜芯乙丙橡皮缘氯丁橡皮护套风力发电用(耐寒)耐扭曲软电缆
FDGG-40(-55)铜芯硅橡胶橡皮缘硅橡胶橡皮护套风力发电用(耐寒)耐扭曲软电缆
Product Type
FDEF-25(-40)Flexible and torsion resistant(cold resistance) cables for wind turbine with copper conductor EPR insulated PCP rubber sheath
FDGG-40(-55) Flexible and torsion resistant(cold resistance) cables for wind turbine with copper conductor Silicone rubber insulation and sheath
兰州众邦电线电缆厂生产的FDGG/FDEF/FDEE风机电缆主要型号规格如下
FDGG/FDEF风电电缆主要规格有
|
一芯 |
二芯 |
三芯 |
四芯 |
五芯 |
六芯 |
十二芯 |
十八芯 |
二十四芯 |
三十六芯 |
|
1.5 |
2*1 |
3*1 |
4*1 |
5*1 |
6*1.5 |
12*1.5 |
18*1.5 |
24*1.5 |
36*1.5 |
|
2.5 |
2*1.5 |
3*1.5 |
4*1.5 |
5*1.5 |
6*2.5 |
12*2.5 |
18*2.5 |
24*2.5 |
36*2.5 |
|
4 |
2*2.5 |
3*2.5 |
4*2.5 |
5*2.5 |
6*4 |
12*4 |
18*4 |
24*4 |
36*4 |
|
6 |
2*4 |
3*4 |
4*4 |
5*4 |
|
|
|
|
|
|
10 |
2*6 |
3*6 |
4*6 |
5*6 |
|
|
|
|
|
|
16 |
2*10 |
3*10 |
4*10 |
5*10 |
|
|
|
|
|
|
25 |
2*16 |
3*16 |
4*16 |
5*16 |
|
|
|
|
|
|
35 |
2*25 |
3*25 |
4*25 |
5*25 |
|
|
|
|
|
|
50 |
2*35 |
3*35 |
4*35 |
|
|
|
|
|
|
|
70 |
2*50 |
3*50 |
4*50 |
|
|
|
|
|
|
|
95 |
2*70 |
3*70 |
4*70 |
|
|
|
|
|
|
|
120 |
2*95 |
3*95 |
4*95 |
|
|
|
|
|
|
|
150 |
|
3*120 |
4*120 |
|
|
|
|
|
|
|
185 |
|
3*150 |
4*150 |
|
|
|
|
|
|
|
240 |
|
3*185 |
4*185 |
|
|
|
|
|
|
FDGG/FDEE风力发电电缆主要规格有
|
3*2.5+1*1.5 |
|
3*4+1*2.5 |
|
3*6+1*4 |
|
3*10+1*6 |
|
3*16+1*10 |
|
3*25+1*16 |
|
3*35+1*16 |
|
3*50+1*25 |
|
3*70+1*35 |
|
3*95+1*50 |
|
3*120+1*70 |
|
3*150+1*70 |
|
3*185+1*95 |
